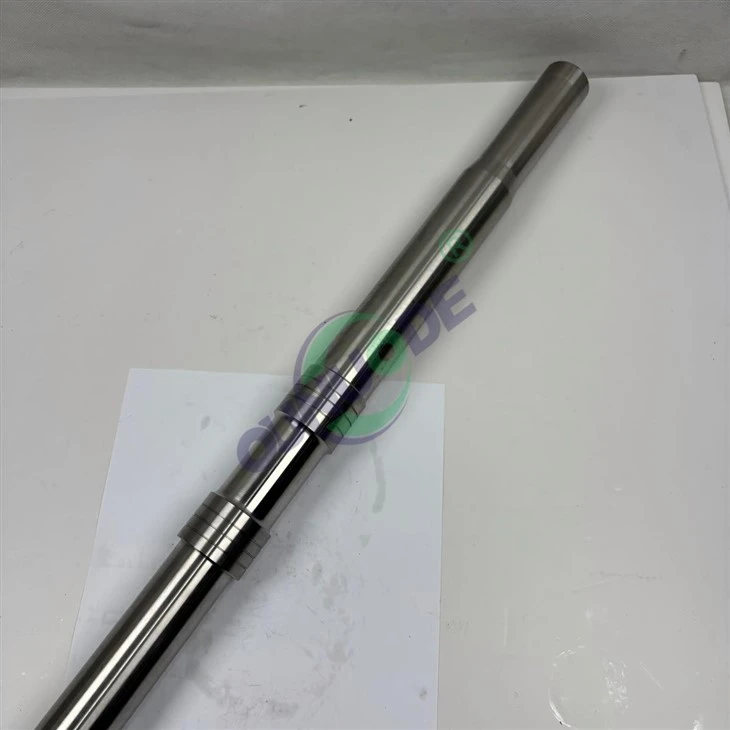

3115600933 Piston For Atlas Air Compressor
Model NO.：3115600933
Certification：CE, RoHS, ISO 9001:2000
Standard：AISI, ASME, GB, ASTM, DIN
Surface Treatment：Without Processing
Manufacturing Process：Forging
Material：Alloy Steel
Specification：500x300x1000mm
Origin：Shaanxi, China
HS Code：843041
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
3115600933 Piston Assembly for Atlas Air Compressor
The Atlas 3115 6009 33 Piston is a high-quality aftermarket replacement designed and fully compatible with Rock Drill & Drifter Model. This part ensures optimal performance and durability, making it an excellent choice for maintaining your mining equipment.
Our Piston spare part is designed to keep your machinery running smoothly. By choosing this product, you're investing in reduced downtime and increased productivity. Experience the difference a superior part can make to your bottom line.
Detailed Technical Specifications
Product Name: Piston 3115600933 - For Atlas Air Compressors
OEM Part Number: 3115600933
Key Features: Aluminum alloy piston body, piston body, 1 high-strength cast aluminum alloy, precision-machined, anodized surface, core moving component, withstands gas pressure
Piston Body Material: ZL109 cast aluminum alloy (equivalent to AISi12Cu1Mg1Ni)
Piston Heat Treatment: T6 heat treatment (solution treatment + aging)
Operating Temperature: -20°C to +200°C
Weight Control: 850 ± 5 g (strictly controlled to ensure engine balance)
Installation Location: Compressor first/second stage cylinder
Important Installation Instructions
Pre-installation Inspection:
Before installation, all components, including the cylinder, piston, and piston pin, must be thoroughly cleaned.
Inspect the cylinder inner wall for scratches and wear, ensuring a surface roughness of Ra ≤ 0.4 µm.
Installation Precautions:
Use a dedicated piston ring compressor during installation to avoid scratching the piston and cylinder.
Heat the piston pin in engine oil to 80-100°C before installation.
Ensure the piston pin retaining ring is fully seated in the groove.
Appropriately apply compressor oil to all friction surfaces during installation.
Safety Warning:
Before servicing the compressor, ensure the system is completely depressurized.
Applications
This clutch plate is suitable for heavy-duty applications, including:
Transportation trucks
Construction vehicles
Long-haul freight
If you have any questions or would like to initiate the cooperation process, please don't hesitate to reach out.
