For Cummins Engines ISB6.7 Fuel Water Separator Spin-On Filter FS1098
1.Part Name : Fuel Water Separator Spin-On Filter
2.OE NO.: FS1098
3.Material：Synthetic Fibers
4.Weight: 1 KG
5.Delivery time:3-5 Days
6.Packing:Carton Packing
7.Payment:TT.paypal.Western Union
8.Stock available: Yes
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

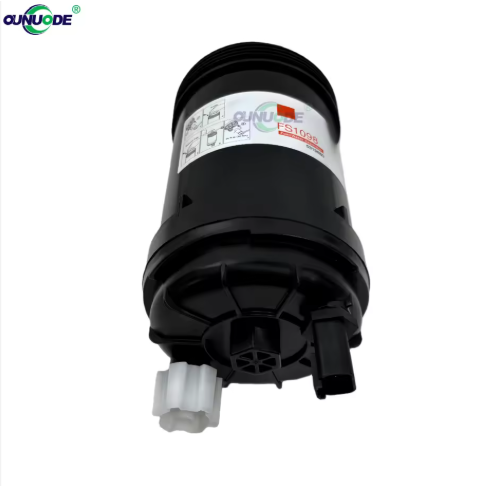

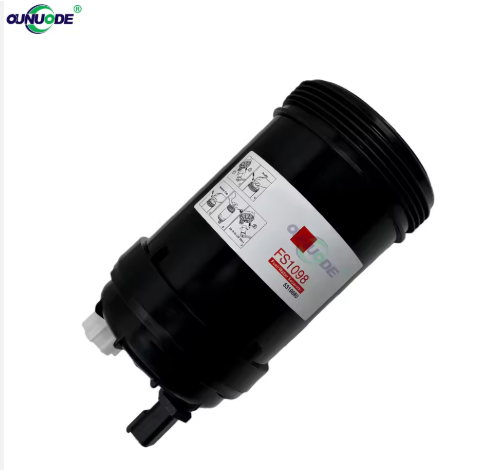

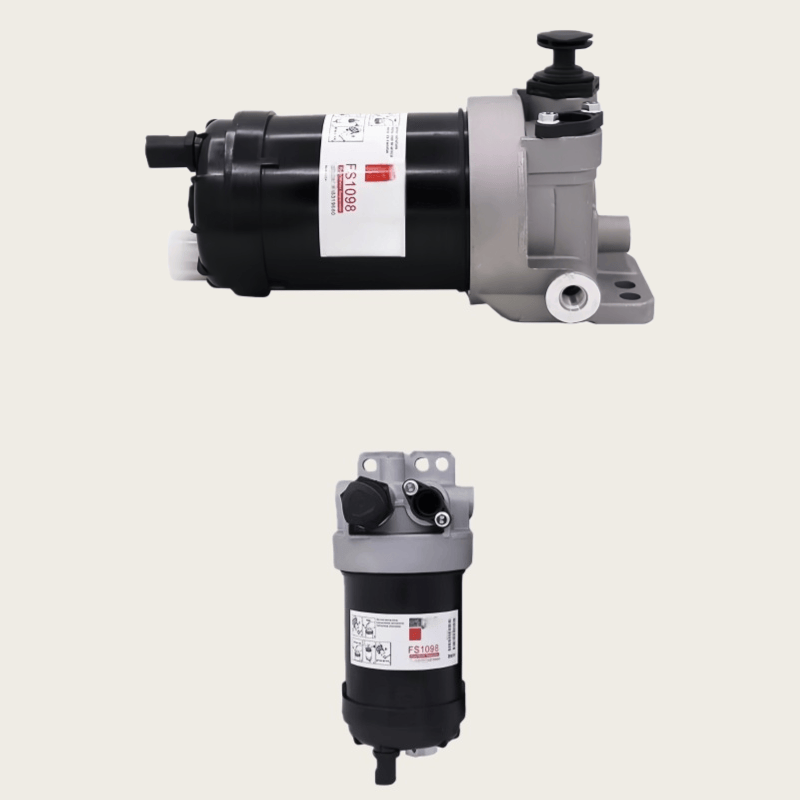

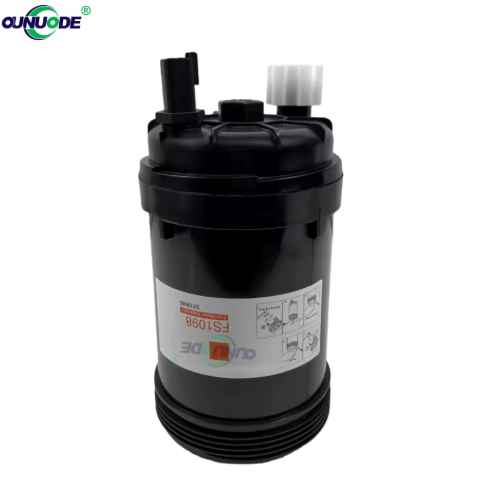

Fuel Water Separator Spin-On Filter FS1098
Applicable engine series:
Cummins :
B6.7 | ISB6.7 | QSB6.7 | ISL8.9 | L9
Paccar :
PX-7 | PX-9
Other equipment : heavy-duty trucks, construction machinery, and generator sets (such as JCB and Doosan equipment) equipped with the aforementioned engines
filter Media technology
| Media type | Multilayer Composite Filter Media |
| Filtration accuracy | 10 micrometers (absolute value) → 100% interception of particles ≥10μm |
| Water separation efficiency | 95% (Based on FleetPride test data, effective for both free water and emulsified water) |
Technological advantages: The layered structure achieves dual-effect purification by first separating water and then filtering particles, avoiding the clogging and failure problems of traditional filter cartridges.
Physical Specifications
| Total height | 229.06 mm | 9.018 inches |
| Maximum outer diameter | 120 mm | 4.724 inches |
| Outer diameter of the washer | 101.64 mm | 4.002 inches |
| Thread diameter | 119 mm | 4.685 inches |
| Pitch | 4.0 mm | - |
cross-References/Alternative part numbers
| Brand | Part Number | Brand | Part Number |
|---|---|---|---|
| Cummins | 5319680, 5308722 | Baldwin | BF46160-SPS |
| Wix | WF10716 | Luber Finer | LFF1098 |
| Doosan | 46652911 | JCB | 400A0727 |
key Value
1. Extend engine life → Protect high-pressure common rail systems (such as Cummins XPI injectors) by thoroughly removing water/particles.
2. Improve fuel economy → Cleaner fuel burns more completely, reducing carbon buildup.
3. Reduce maintenance costs → Efficiently separate moisture to prevent microbial growth (the "algae" problem in diesel fuel)
4. Compliance Guarantee → Compatible with ULSD and biodiesel, meeting global emission regulations.
⚠️Note : When replacing, ensure that the thread specification (Buttress sawtooth thread) matches the installation dimensions to avoid seal failure.
